Reactive Power (tolerance):
Class 1
Connection (voltage):
Wire (fixed) min. 0.05 mm² / max. 4mm²;Wire (flexible) min. 0.05 mm² / max. 2.5mm²
Connection (current):
Wire (fixed) min. 0,05 mm² / max. 4mm2;Wire (flexible) min. 0,05 mm² / max. 2,5mm²
Emission test:
according to EN 61326-1 class B, IEC 61326-1 class B
Real energy (tolerance):
Class 1
Rated frequency:
50Hz - 60Hz (automatische Wahl)
Electromagnetic compatibility:
##
Insulation voltage:
300V (phase - neutral)
Conexiune:
Clema cu șurub
Funcţie:
Network analyzer
Nominal current (input):
5A - nur Stromwandleranschluss
Voltage (three-phase network):
80 ... 500 V (phase-phase)
Voltage (alternating current network):
50 … 290 V
Power (tolerance):
Class 1

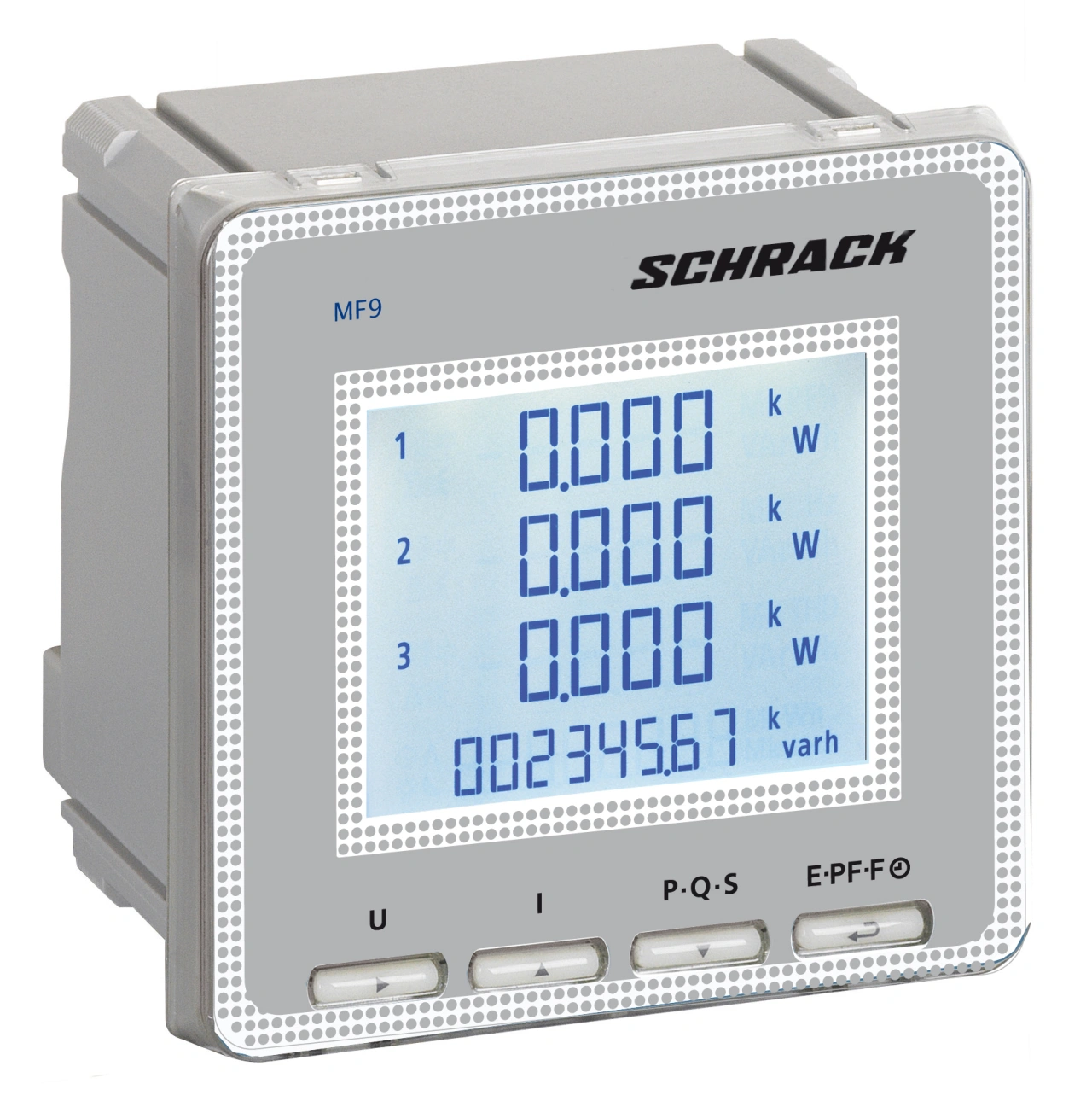

Display indication:
4 lines / 4 digits
Housing material:
Polycarbonate, self-extinguishing
Reference temperature:
23 ± 2
Buton:
4 front keys, access protected by password
Frequency (tolerance):
± 0.1 Hz
Test circuit:
all circuits and ground
PROMO CODE GER INDUSTRY:
1387-00129-90
Display values:
Customized display pages;Connections (network type);Average power / current delay time;Start of measurement ( operating hours counter);Measuring point RS485;Current transformer ratio;Pulse output
Housing type:
for panel mounting (panel cut-out 92 x 92 mm)
Working frequency:
45 … 65
PROMO CODE CH:
1387-0213-88
Self-consumption (voltage path):
≤ 0.2VA (phase - neutral)
Installation category:
III
Current (tolerance):
Class 0.5
Gama de temperatură - Transport/Depozitare:
-25 to +70
Temperatura minimă a mediului ambiant:
-25
Mains type:
Alternating current network and 4-wire three-phase network
Temperatura maximă a mediului ambiant:
55
Grad de protecţie:
IP54 (front), IP20 (connections)
Overload (short-time):
20 In / 0.5 seconds
Afişaj:
LCD with backlight
Voltage (tolerance):
Class 0.5
Temperatură de funcţionare:
-5°C to +55°C
Immunity test:
according to EN 61326-1 , IEC 61326-1
Self-consumption (current path):
≤ 0,4VA (per phase at max 6A)
Supply:
from measuring circuit (phase L1 - N)
Isolation test voltage :
3 kV R.M.S. 50 Hz/1min
Overload (continuous):
1.2 In
Harmonic content:
up to the 40th harmonic
