Frequency (tolerance):
± 0.15 Hz
Emission test:
according to EN 62052-11
Consum de putere:
< 3,5 W / ≤4VA (without additional modules)
PROMO CODE GER INDUSTRY:
8419-00200-73
Connection (current):
max. 6mm²
Voltage (alternating current network):
50 … 400 V
Data storage:
storage of data in non-volatile memory

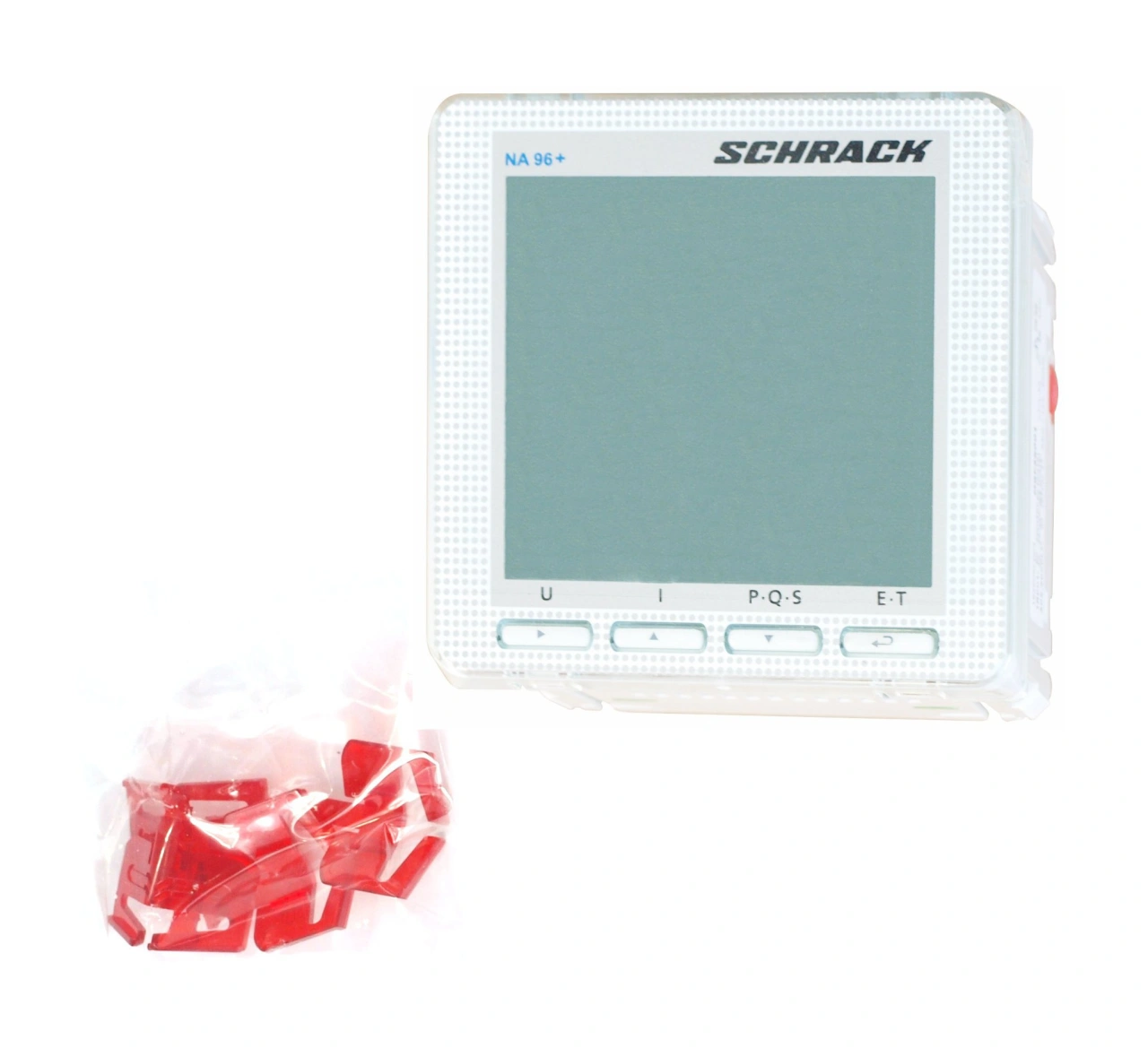

Descriere electrică CAD:
NA96+
Operating frequency (auxiliary voltage):
47 ... 63 Hz
Relay:
Assignment of measured variable, switching threshold, min or max, NO or NC, hysteresis, response delay, dropout delay
Connection (voltage):
max. 4mm²
Electromagnetic compatibility:
##
PROMO CODE CH:
8419-0340-44
Insulation voltage:
300V (phase - neutral)
Reactive Power (tolerance):
Class 2 (EN62053-23)
Harmonic content:
up to the 22nd harmonic
Conexiune:
Clema cu șurub
Funcţie:
Network analyzer
Current (tolerance):
± 0.2% (10...120% In)
Accesorii opționale:
MGF3900A--;MGF3900B--;MGF3900B--;MGF3900E--;MGF3900I--;MGF3900L--;MGF3900M--;MGF3900P--;MGF3900R--;MGF3900S--;MG900222--;MG900225--;MG952006-A;MG952010-A;MG952025-A;MG954060-A;MG955080-A;MG957200-A;MG959300-A;MG959400-A
Immunity test:
according to EN 62052-11
Power (tolerance):
± 0.5% (10...120% Pn, Qn,Sn)
Tip reţea:
1 - phase or 3 / 4 - phase connection
Temperature influence:
≤ 0,1% / °C
Measuring method:
True RMS conversion
Nominal current (input):
5A - 1A - nur Stromwandleranschlus
Display indication:
4 lines / 4 digits
Voltage (tolerance):
± 0.2% (80...690 V phase - phase)
Housing material:
Polycarbonate, self-extinguishing
Reference temperature:
23 ± 2
Buton:
4 front keys, access protected by password
Integration time:
adjustable 5/8/10/15/20/30/60 minutes
Primary currents (A):
1 ... 9999 (max. primary current 50kA / 5A - 10kA / 1A)
Primary voltage (V):
1 ... 3000 (max. primary voltage 300000V)
Real energy (tolerance):
Class 0.5 (62053-21)
Auxiliary voltage Uaux:
80 ... 265VAC / 110 ... 300VDC
Test circuit:
all circuits and ground
Self-consumption (voltage path):
≤ 0.5VA (per phase)
Self-consumption (current path):
≤ 0.5VA (per phase)
Housing type:
for panel mounting (panel cut-out 92 x 92 mm)
Isolation test voltage :
4 kV R.M.S. 50 Hz/1min
Rated frequency (auxiliary voltage):
50 Hz
Voltage (three-phase network):
80...600 V (phase-phase)
Current average:
Integration time
Installation category:
III
Tipul comunicării:
RS 232, address, baud rate, parity bit
Gama de temperatură - Transport/Depozitare:
-25 to +70
Temperatura minimă a mediului ambiant:
-25
Depth (incl. Modules) :
81
Temperatura maximă a mediului ambiant:
55
Grad de protecţie:
IP54 (front), IP20 (connections)
Measuring cycle time:
1,10
Overload (short-time):
20 In / 0.5 seconds
Afişaj:
LCD with backlight
Temperatură de funcţionare:
-5°C to +55°C
Pulse value:
Active or reactive energy, valence, pulse duration
Backlight dimmable:
0 - 30 - 70 - 100%
Overload (continuous):
1.2 In
Backlight:
switches off automatically after 20 seconds without operation
Mains type:
1 - phase or 3 / 4 - phase connection
Programmable parameters:
##
