Consum de putere:
≤ 5 VA – 2,5 W
Connection (voltage):
Wire (fixed) min. 0.05 mm² / max. 4mm²;Wire (flexible) min. 0.05 mm² / max. 2.5mm²
DIN rail:
TH35-15 (EN60715)
PROMO CODE GER INDUSTRY:
8668-00090-67
Connection (current):
Wire (fixed) min. 0,05 mm² / max. 4mm2;Wire (flexible) min. 0,05 mm² / max. 2,5mm²
PROMO CODE CH:
8668-0149-24
Operating frequency (auxiliary voltage):
47 ... 63 Hz
Current (tolerance):
± 0.5% (10...120% In)
Harmonic content:
up to the 16th harmonic
Electromagnetic compatibility:
##
Funcţie:

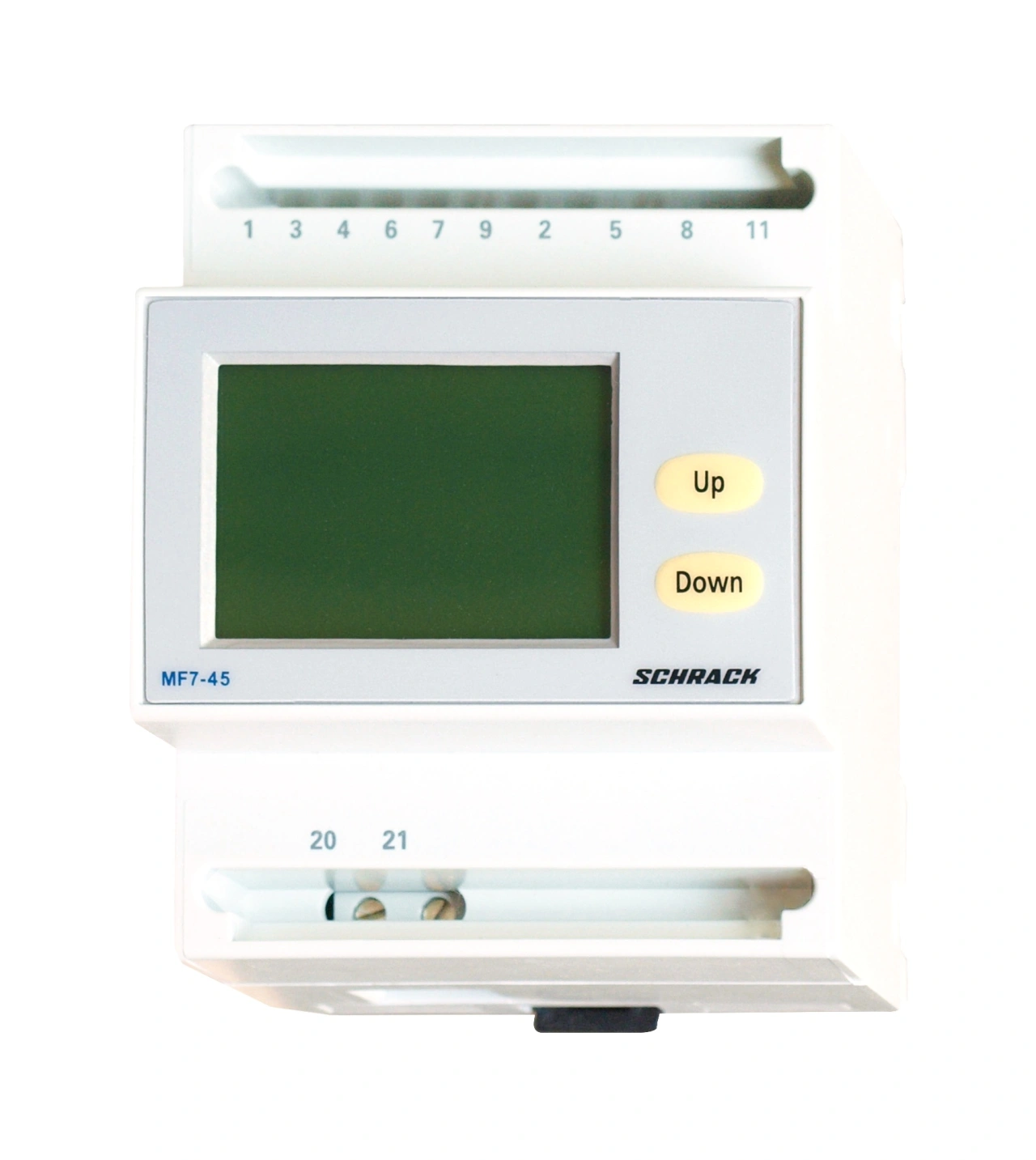

Network analyzer
Tip reţea:
Alternating current network - three-phase network (4-wire)
Measured variable unit:
automatic, depending on the setting of the transformer primary current
Power (tolerance):
± 1,5% (10...120% cosϕ 0,5 ind...0,5kap.)
Self-consumption (voltage path):
≤ 1VA (per phase)
Isolation:
Insulation according to EN 60439-1
Temperature influence:
≤ 0,1% / °C
Umiditate relativă:
0 … 95%
Auxiliary voltage Uaux:
230 - 240 V
Measuring method:
True RMS conversion
Housing material:
Polycarbonate, self-extinguishing
Reference temperature:
23 ± 2
Indication in display:
Average current and its maximum value
Insulation voltage:
660 V
Temperatura maximă a mediului ambiant:
70
Integration time:
adjustable 5/8/10/15/20/30/60 minutes
Nominal current (input):
5A
Toleranţă:
0,85...1,1Uaux
Data storage:
into non-volatile memory (without battery)
Test circuit:
all circuits and ground
Frequency (tolerance):
± 0.2 Hz
Self-consumption (current path):
≤ 0.5VA (per phase)
Resolution:
automatic, with the max. possible decimal places
Voltage (alternating current network):
50...350 V
Programming access:
Key combination
Current average:
Integration time, reset of the maximum value
Descriere electrică CAD:
MF7-45
Neutral current (tolerance):
± 2%
Isolation test voltage :
4 kV R.M.S. 50 Hz/1min
Rated frequency (auxiliary voltage):
50 Hz
Emission test:
according to EN 61000-6-3
Voltage (tolerance):
± 0,5% (80...450 V phase - phase)
Voltage (three-phase network):
80...600 V (phase-phase)
Tip conexiune:
only in connection with external current transformers which have inputs;a common point (connection 3 - 6 - 9)
Installation category:
III
Operating hours counter:
Reset
Gama de temperatură - Transport/Depozitare:
-25 to +70
Calculation:
Average value for current and active power over the set time period
Display values:
Display voltage phase-phase and phase-N;Current-conductor and neutral current;Frequency;Average current;Operating hours (hours and minutes);Maximum value of the average current
Mains type:
Alternating current network and 4-wire three-phase network
Metodă de montaj:
snap-on DIN rail 35 mm
Grad de protecţie:
IP54 (front), IP20 (connections)
Primary currents (A):
5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 75, 80, 100, 120, 125, 150, 160, 200, 250, 300, 400, 500, 600, 700, 750, 800, 1000, 1200, 1250, 1500, 1600, 2000, 2500, 3000, 3200, 4000, 5000, 6000, 7000, 7500, 8000 A
Overload (short-time):
20 In / 0.5 seconds
Afişaj:
LCD with backlight
Housing type:
4 Module DIN 43880 (71.2 mm wide)
Immunity test:
according to EN 61000-6-2
Temperatură de funcţionare:
-5°C to +55°C
Temperatura minimă a mediului ambiant:
-40
Overload (continuous):
1.2 In
Backlight:
switches off automatically after 20 seconds without operation
Display indication:
10.000 points (4 digits)
Measuring cycle time:
1,20
Programmable parameters:
##
