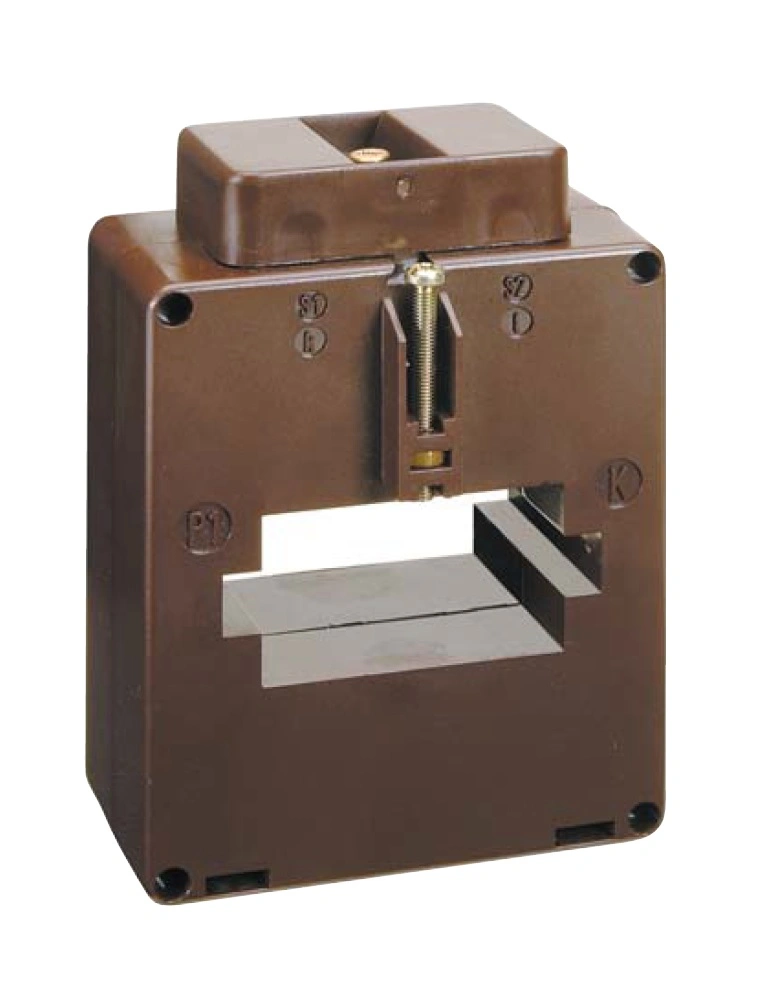

Transformator de curent 1200/5A 50*30/60*10mm, clasa 0,5

Cod: SCHR-MG956120-A
327,60 Lei
Preț fără TVA
Stoc epuizat
COD PROMO: 2818-0027-76
Masă g: 500
disipare: 16,00
Conexiune: ##
PROMO CODE GER INDUSTRY: 2818-00024-15
LxÎxA mm: 90x130x48
Accuracy classes: ##
COD COMANDĂ: MG956120-A
Bare colectoare maxim: 60x10
Unitate de ambalare: 1
DESCRIERE2: Transformator de curent 1200/5A
Carcasă: ##
Decupaj mm: 50x30;60x10
PREG: 2330
PROMO CODE CH: 2818-0046-12
HxBxT mm: 130x90x48
Curent primar: 1200
Notă: The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
Temperatura maximă a mediului ambiant: 60
Grad de protecţie: IP00 terminals;IP20 with terminal cover
Rated current secondary side Isr: 5A
Housing material: Polycarbonate, self-extinguishing
Burden: Class 0.5 (10VA);Class 1 (12VA);Class 3 (15VA)
Fabricant: Schrack
Montaj: by fixing screws on the busbar
Rated current primary side Ipr: 1200
Rated frequency: 50
Clasă: 0,5
-: -
Masă netă: 0,47
Temperatura minimă a mediului ambiant: -25
Standard produs: EN 61869-2
Winding secondary side: Screw terminals M4;Faston 4,8x0,8mm
Intended use: for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm
DECUPAJ mm: 60x10
