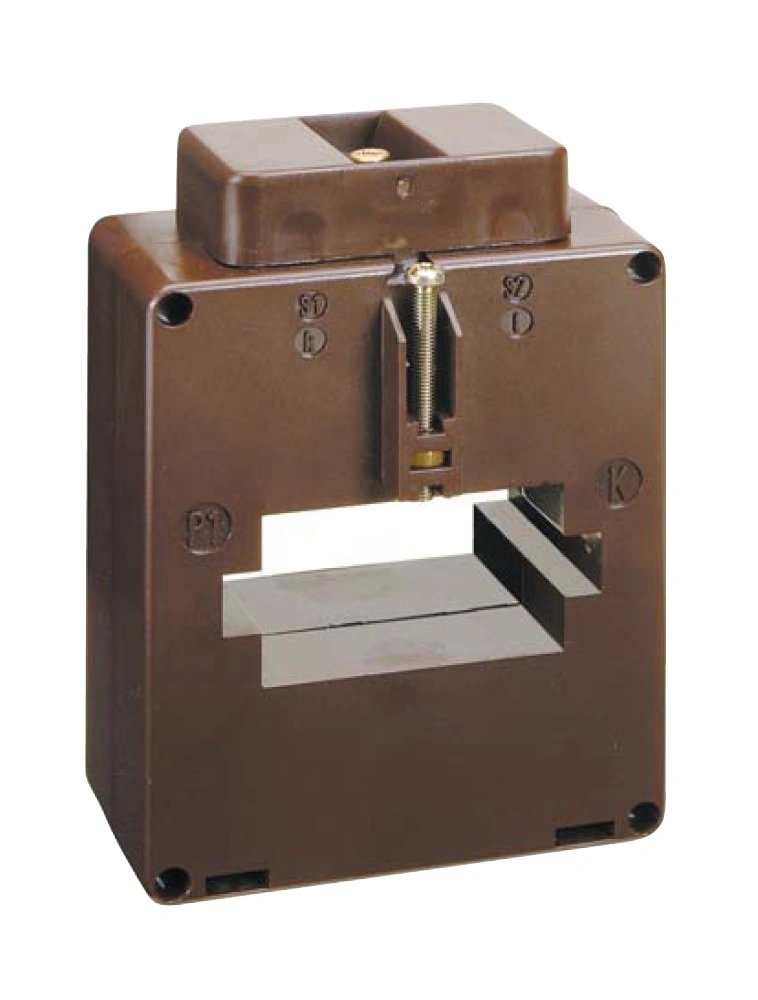

Transformator de curent 1600/5A 50*30/60*10mm, clasa 0,5

Cod: SCHR-MG956160-A
309,80 Lei
Preț fără TVA
Stoc epuizat
Masă g: 500
disipare: 16,00
Conexiune: ##
Rated current primary side Ipr: 1600
LxÎxA mm: 90x130x48
Accuracy classes: ##
Bare colectoare maxim: 60x10
Unitate de ambalare: 1
Carcasă: ##
Decupaj mm: 50x30;60x10
PREG: 2330
COD COMANDĂ: MG956160-A
HxBxT mm: 130x90x48
DESCRIERE2: Transformator de curent 1600/5A
Notă: The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
Temperatura maximă a mediului ambiant: 60
Grad de protecţie: IP00 terminals;IP20 with terminal cover
Rated current secondary side Isr: 5A
Housing material: Polycarbonate, self-extinguishing
Burden: Class 0.5 (10VA);Class 1 (12VA);Class 3 (15VA)
Fabricant: Schrack
Montaj: by fixing screws on the busbar
Rated frequency: 50
Clasă: 0,5
-: -
COD PROMO: 9111-0030-02
Masă netă: 0,47
Temperatura minimă a mediului ambiant: -25
Standard produs: EN 61869-2
PROMO CODE CH: 9111-0049-80
Winding secondary side: Screw terminals M4;Faston 4,8x0,8mm
Intended use: for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm
Curent primar: 1600
DECUPAJ mm: 60x10
PROMO CODE GER INDUSTRY: 9111-00027-28
