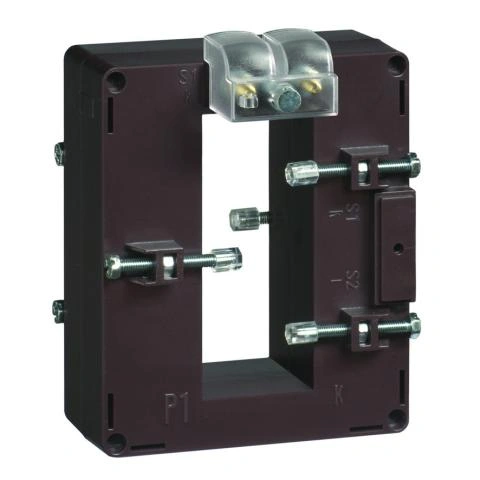

PROMO CODE CH:
7105-0046-08
Rated current primary side Ipr:
1000
Rated dynamic current Idyn:
2.5Ith
PROMO CODE GER INDUSTRY:
7105-00035-14
Max. Operating voltage Um:
0.72kV r.m.s.
Domeniul de frecvenţă:
47 - 63Hz
Short-time current Ith:
< 60Ipr
Reference temperature:
23°C ±1°C
Condiţii climatice:
Suitable for tropical climate
Winding secondary side:
Screw terminals M4
Thermal rated continuous current according to EN60044-1:
##
Notă:
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
Temperatura maximă a mediului ambiant:
60
Gama de temperatură - Transport/Depozitare:
-40 to +85
Daily average temperature:
≤ 30°C
Grad de protecţie:
IP00 terminals;IP20 with terminal cover
Rated current secondary side Isr:
5A
Descriere electrică CAD:
1000/5A, 80x30mm
Bare colectoare maxim:
80x30
Isolation:
Class B (EN/IEC 61869-1, 61869-2)
Montaj:
by fixing screws on the busbar
Intended use:
for copper bars up to 80 x 30mm
Thermal power loss:
≤ 19W at Icth;125°C Maximum temperature cable/busbar.
Insulation requirements:
##
Housing material:
Polycarbonate, self-extinguishing;Class V0 according to UL-94
Gama de temperatură - Funcţionare:
-25 bis +40
Temperatura minimă a mediului ambiant:
-25
Categorie produs:
Normal installation (DIN EN 61869-2)
Accesorii opționale:
MGX20006--;MGX20306--;MGX20406--
Burden:
Class 0.5 (10VA);Class 1 (15VA);Class 3 (20VA)
Standard produs:
EN 61869-2;BS3938;BS7626
Isolation test voltage :
3 kV R.M.S. 50 Hz/1min
Versiune:
Dry type transformer, air insulation
