Sisteme de îmbinare a fibrei optice

Filtre

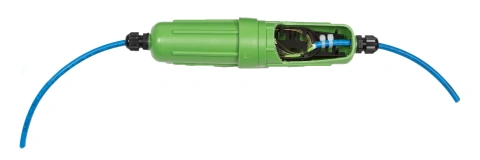

Manșon de conectare 1-FO-CS/termocontractibil, 2xM16

460,60 Lei

Manșon de conectare 1-FO-CS/termocontractibil, 2xM16

Cod produs: SCHR-HELMUFF001

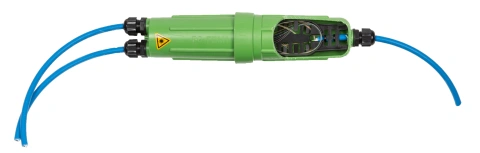

Manșon de ramificație FDM 1-FO-BS/termocontractibil, 3xM16

476,60 Lei

Manșon de ramificație FDM 1-FO-BS/termocontractibil, 3xM16

Cod produs: SCHR-HELMUFF002

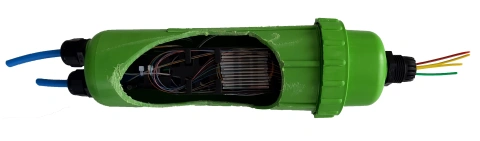

Manșon conex./ramificație 2-FO-termocontractibil,1xM25,2xM20

562,79 Lei

Manșon conex./ramificație 2-FO-termocontractibil,1xM25,2xM20

Cod produs: SCHR-HELMUFF003

Material:

HELMUFF001und HELMUFF002: Polypropylen, l = 255mm, Ø = 72mm (Casing, 1 Splicetray)
HELMUFF003: Polypropylen, l = 300mm, Ø = 101mm (Casing, 2 fibre optic carrier)

Spliceholder:

HELMUFF001und HELMUFF002: 2 x 12 shrink or crimp (Splicetray), PE
HELMUFF003: 4 x 12 shrink or crimp (Splicetray, mounted)

Gland:

HELMUFF001: 2 x M16, 2 x M20 or 2 x M25 (Case PA, IP68)
HELMUFF002: 2 x M16 and 1 x M16, 2 x M16 and 1 x M20, 2 x M16 and 1 x M25 or 2 x M20 and 1 x M20 (Case PA, IP68)
HELMUFF003: 2 x M20 and 1 x M25 (Case PA, IP68)

Spare sealing plug included: 1 x M20, 1 x M25

Cable entry:

HELMUFF001 + HELMUFF002:

M16: 4.5 – 9mm diameter 3,5Nm bolting force
M20: 7 – 14mm diameter 5,0Nm bolting force
M25: 11 – 17mm diameter 8,5Nm bolting force

HELMUFF003:

M20: 7 – 13mm diameter 5,0Nm bolting force
M25: 11 – 17mm diameter 8.5Nm bolting force

Tension strength: 55N
Temperature range: -30° / +65°
Maximal length fibre: 180mm
Bending fibre: 36mm
Impact-steel-ball, 1m (no leak)
Usage: usually in the ground
